DUO SPECIFICATIONS

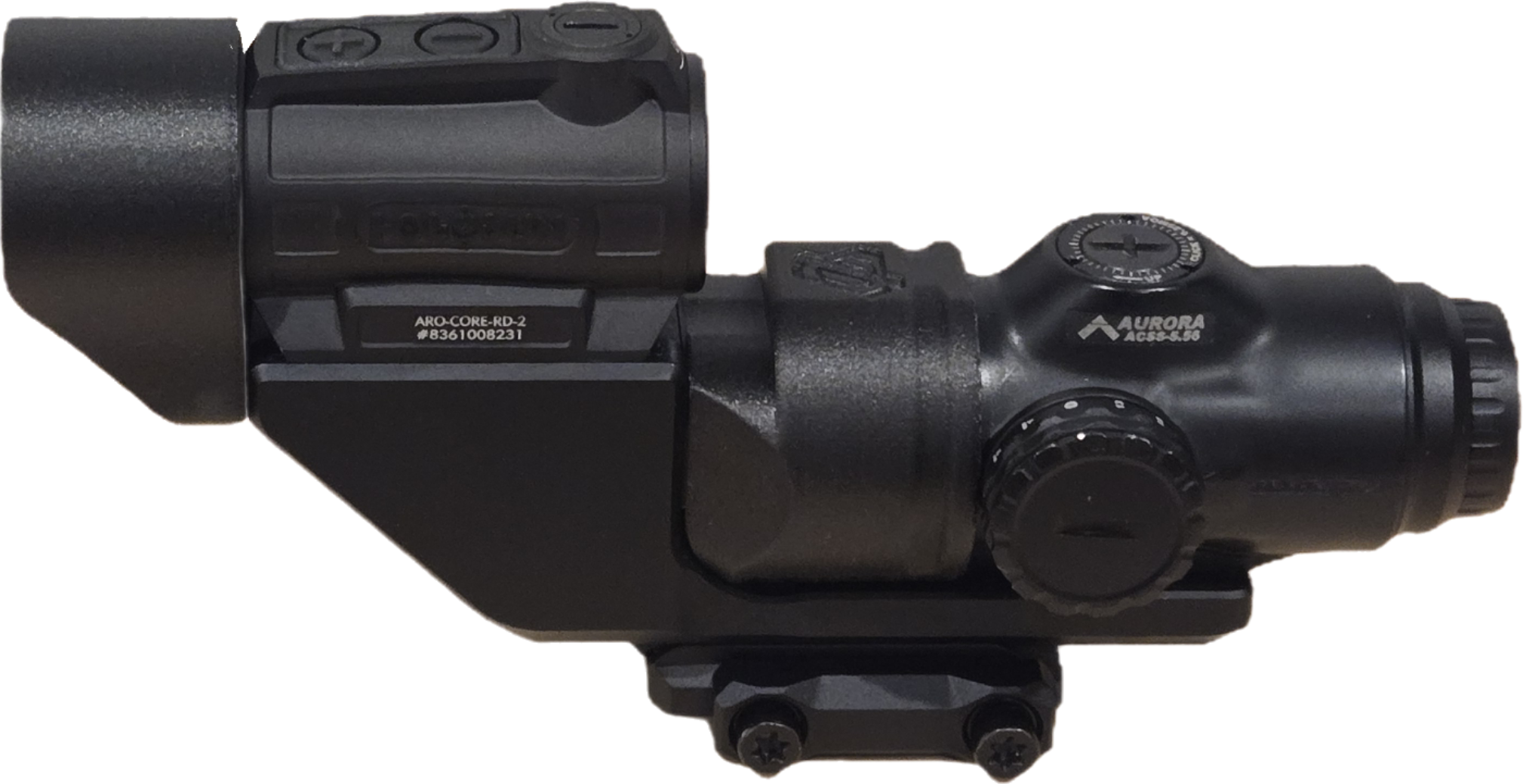

PA 5X MP + HS ARO-CORE-RD-2: 492g with 1.54 and 2.87-inch optical centerlines

The DUO places the Primary Arms Microprism at the same 1.54” centerline height as the medium and straight spacers included with the optic.

Red dots vary, but the low-cut T1/T2 height ends up being about 2.7” from the top surface of the picatinny rail.

Alternatively, the Holosun ARO-CORE and 515GM come out at about 2.87”, with their EVO-SPR coming in at about 2.98”.

The Griffin GSP lands at about 3.02”.

Configuration Weights

PA 5X MP + HS ARO-CORE: 472g / 492g with shade attached

PA 3X MP + GA GSP1XR: 547g / 572g with shade attached

(These two builds establish the general range of assembly weight)

Shade Weights

(All weights given with screws)

HS ARO-CORE: 18g

HS 515GM: 18g

HS EVO-SPR: 23g

GA GSP1XR: 25g
